Representative Elementary Volume (REV) Analysis (lbpm_rev_analysis)

The degree of heterogeneity observed in digital rocks is an important factor in characterizing porous media. Advances in the resolution and sample size achievable with X-ray microtomography have made it increasingly feasible to digitally investigate larger volumes that capture the intrinsic heterogeneities of porous structures. These developments enable the identification of representative elementary volumes (REVs), beyond which the influence of local heterogeneities becomes negligible and specific effective properties of the porous medium can be reliably characterized.

The lbpm_rev_analysis routine provides an automated REV analysis for a range of geometrical and hydrodynamic properties, as summarized in Table 1. By combining deterministic and statistical approaches, the routine enables a comprehensive characterization of these properties, providing valuable insights for assessing the representativeness of microtomography images and estimating effective sample volumes for subsequent numerical analyses.

Table 1 - Properties available for REV analysis.

	Property 1	Property 2
Geometrical	Porosity (\(\phi\))	Specific Surface Area (\(A_{s}\))
Hydrodynamic	Absolute Permeability (\(K_{z}\))	Hydraulic Tortuosity (\(\tau_{h}\))

Methodology

The implemented REV routine combines deterministic and statistical approaches into a hybrid methodology, as illustrated in the workflow diagram presented in Fig. 5 -. The deterministic stage provides an initial estimate of the REV size at a relatively low computational cost. This estimate is subsequently used to initialize the statistical stage, which evaluates the spatial variability of the property over randomly distributed subvolumes. The deterministic analysis uses a default convergence threshold of \(\gamma = 0.1\). The statistical stage reports coefficients of variation and retains the first subvolume sizes at which the coefficients for porosity and permeability fall below this tolerance. For a detailed explanation of the steps illustrated in Fig. 5 -, expand the toggle sections below for the deterministic and statistical analyses.

Fig. 5 - Workflow of the hybrid REV analysis, combining deterministic (steps 1–5) and statistical (steps 6–9) convergence assessments.

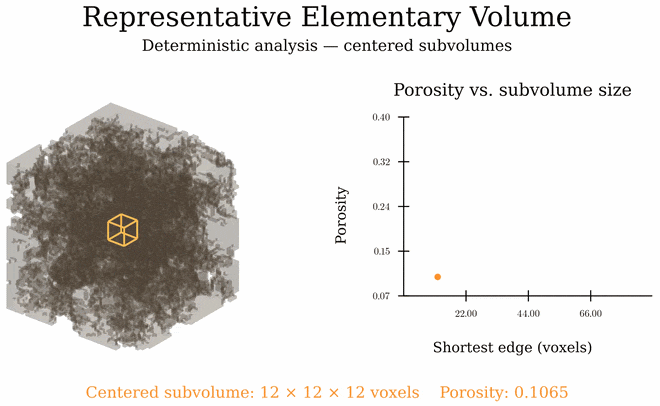

Fig. 6 - GIF animation illustrating the hybrid REV analysis for porosity.

Deterministic Analysis

Click here to open: Deterministic Analysis

The deterministic approach evaluates a property of interest within a subvolume centered in the computational domain. The analysis is repeated for progressively larger subvolumes until the measured property becomes approximately independent of the subvolume edge length. The smallest subvolume satisfying the prescribed convergence criteria is identified as the deterministic REV.

The main advantage of this approach is its relatively low computational cost, as only one subvolume is evaluated for each edge length. However, the results may be sensitive to local fluctuations, including maxima, minima, and inflection points, potentially leading to false convergence.

The deterministic procedure, illustrated in the upper part of the workflow diagram, consists of the following steps:

1. Initialize the subvolume size: The initial edge length is defined as twice the average pore diameter,

   (110)\[\ell_0 = 2\overline{d}_p.\]

2. Evaluate the domain-size constraint: Before each evaluation, the subvolume dimensions are checked against the available computational domain. If the prescribed maximum size is exceeded before convergence, no deterministic REV is identified.

3. Measure the property: The property of interest, \(q_i\), is evaluated within the centered subvolume.

4. Compute the convergence criteria: Two complementary metrics are calculated to quantify the variation of the measured property with increasing subvolume size.

   The first metric is the relative error (RE), defined as

   (111)\[RE_i = \left|\frac{q_i-q_{i-1}} {q_i+q_{i-1}} \frac{V_{i-1}}{V_i} \right| < \gamma,\]

   where \(RE_i\) is the relative error at iteration \(i\), \(q_i\) represents the measured property in the \(i\)-th subvolume, and \(V_i\) denotes the volume of that sampled subvolume. This metric quantifies the local variation of the property as the evaluated subvolume increases in size.

   The second metric is the convergence criterion (CC), introduced by :

   (112)\[CC_i = \frac{\sigma(q_{i-m+1},\ldots,q_i)}{\overline{q}(q_{i-m+1},\ldots,q_i) } < \gamma,\]

   where \(\sigma\) denotes the standard deviation, \(\overline{q}\) represents the arithmetic mean, and \(m\) is the number of consecutive measurements considered. By evaluating the dispersion of the most recent measurements, this metric reduces the likelihood of false convergence associated with local fluctuations. The default value is \(m=10\).

5. Assess convergence and update the subvolume size: The first subvolume size for which both convergence criteria satisfy the prescribed tolerance is recorded as the deterministic REV for each property. Sizes continue to increase up to the maximum admissible domain size. The proportional growth is controlled by SizeStep; for example, SizeStep = 0.06 gives the nominal update

   (113)\[\ell_{i+1}=1.06\ell_i.\]

   The implementation also applies a minimum increment based on the average pore diameter and rounds the edge length upward to whole voxels, so the actual increase can be larger. The default SizeStep is 0.06 (6%).

Statistical Analysis

Click here to open: Statistical Analysis

The statistical approach evaluates the spatial variability of a property by sampling multiple subvolumes distributed throughout the computational domain. For a given edge length, the property is measured in a set of randomly selected subvolumes, and the dispersion of the resulting measurements is assessed.

The current implementation repeats this sampling for increasing subvolume sizes and reports the dispersion at each size. These results can be compared with the prescribed tolerance to identify sufficiently consistent measurements.

Compared with the deterministic approach, statistical analysis is computationally more expensive because multiple subvolumes must be evaluated at each edge length. Nevertheless, it provides a more robust assessment of spatial heterogeneity and reduces the risk of identifying false convergence caused by localized features.

An important limitation arises as the subvolume size approaches the dimensions of the computational domain. In this situation, increasing overlap between sampled subvolumes can artificially reduce the measured dispersion, potentially leading to an overestimation of convergence.

The statistical procedure, represented in the lower part of the workflow diagram, follows these steps:

7. Initialize the statistical analysis: The edge length corresponding to the deterministic REV is adopted as the initial subvolume size, avoiding the repeated evaluation of smaller volumes that have already been assessed.

8. Verify the edge length: If the edge length is larger than the maximum admissible edge length, the analysis stops and no REV is found. If it is smaller, the analysis continues.

9. Select random subvolumes: For the prescribed edge length, \(N\) subvolumes are randomly selected within the computational domain. The number of sampled subvolumes is specified by StatSamples and defaults to 50 at each size. The current routine does not adapt this count based on the stability of the estimated CV.

10. Measure the property for each subvolume: The property of interest is evaluated for all subvolumes selected in the previous step.

11. Compute the convergence criterion: The dispersion of the measurements is quantified using the coefficient of variation (CV), following :

    (114)\[CV = \frac{\sigma(q)}{\overline{q}},\]

    where \(\sigma(q)\) is the standard deviation of the property measurements and \(\overline{q}\) is their arithmetic mean. Normalization by the mean provides a dimensionless measure of relative dispersion.

12. Evaluate statistical convergence: The computed coefficient of variation is compared with the prescribed tolerance \(\gamma\). Statistical convergence is achieved when

    (115)\[0 \leq CV < \gamma.\]

    If the criterion is satisfied, the current edge length is identified as the statistical REV, and the procedure terminates. Otherwise, the analysis proceeds to the next step.

13. Increase the edge length: If statistical convergence has not been achieved, the edge length is increased according to SizeStep and the prescribed minimum increment. The procedure then returns to step 8 to verify whether the new size remains admissible.

Run REV Analysis

REV analysis can be performed either alongside a single-phase permeability simulation using lbpm_rev_permeability_simulator or independently using lbpm_rev_analysis.

Currently, neither routine supports parallel execution across multiple MPI processes. Therefore, both routines must be executed using a single MPI process. To ensure compatibility, set nproc = 1, 1, 1 in the Domain configuration block.

lbpm_rev_permeability_simulator

The lbpm_rev_permeability_simulator executable runs the single-phase flow simulation, computes the velocity field, and then performs deterministic and statistical REV analyses. A typical command for a single-process run is:

mpirun -np 1 lbpm_rev_permeability_simulator input.db

The standard lbpm_rev_permeability_simulator executable does not invoke the REV routines. REV analysis is activated by the presence of a REV block in input.db, alongside the usual Domain and MRT blocks. For example:

REV {
   Geometrical = True
   Hydraulic = True
   SubdomainSelect = True
   subdomain_size = 64
   save_subdomain_raw = false
   gamma = 0.1
   SizeStep = 0.06
   CCInterval = 10
   StatSamples = 50
   Seed_Anchor = True
}

To disable REV analysis in lbpm_rev_permeability_simulator, the entire REV block must be omitted. If the block is present but no parameters are specified, the REV analysis will run using the default parameter values.

lbpm_rev_analysis

The routine lbpm_rev_analysis performs REV analysis from an input geometry. Geometrical analysis requires the geometry alone; hydraulic analysis also requires velocity fields saved by an earlier single-phase flow simulation.

mpirun -np 1 lbpm_rev_analysis input.db

For geometrical analysis alone, the geometry is sufficient. Hydraulic defaults to False in this routine, so porosity and specific surface area can be evaluated without loading velocity fields. This default can also be set explicitly:

REV {
   Geometrical = True
   Hydraulic = False
}

An MRT block is not required for this configuration. Set Hydraulic = True explicitly to enable hydraulic analysis when previously saved flow results are available. However, this analysis requires velocity fields obtained from a prior single-phase flow simulation. Currently, the routine supports only MRT simulations performed with BC = 0, where the pressure gradient is imposed through an external body force (e.g., F = 0.0, 0.0, 1.0e-5). For example, the following configuration block enables both property groups:

REV {
   Geometrical = True
   Hydraulic = True
   Seed_Anchor = True
   SimulationParams = "/path/to/simulation/input.db"
   VelocityPath = "/path/to/simulation/results"
   VelocityTimestep = "vis3000"
}

When Hydraulic = True, the three settings SimulationParams, VelocityPath, and VelocityTimestep must be explicitly supplied and nonempty. If any are missing or blank, lbpm_rev_analysis prints a message listing them and exits with a nonzero status before loading the saved files or geometry. These settings are not required for geometrical analysis alone.

Note that, in addition to the velocity fields saved in the vis* folder, it is also necessary to provide the path to the input.db file used in the previous single-phase flow simulation. This file is required to retrieve the pressure drop and fluid viscosity used to calculate the absolute permeability. The supported file formats for the velocity fields stored in the vis* folder are silo and hdf5.

Model parameters

For a detailed description of the REV analysis parameters, expand the section below using the toggle button.

Click here to open: REV Parameters

Geometrical and Hydraulic select the property groups evaluated in both analysis stages. Setting Geometrical = True enables porosity and specific surface area analysis, while Hydraulic = True enables permeability and hydraulic tortuosity analysis. Setting either parameter to False skips its corresponding group. Geometrical defaults to True in both routines. Hydraulic defaults to False in lbpm_rev_analysis and to True in lbpm_rev_permeability_simulator. An explicit setting overrides the default. Setting both parameters to False skips both REV analyses.

gamma is the dimensionless convergence tolerance, with a default value of 0.1. A deterministic REV is identified for a property when both its relative error (RE) and convergence criterion (CC) are valid and smaller than gamma. The statistical analysis independently retains the first porosity and permeability sizes with a valid coefficient of variation (CV) below gamma, together with their respective means and window dimensions. For example, gamma = 0.1 requires both metrics to be below 10%. A smaller value imposes a stricter convergence requirement and may lead to a larger REV estimate or prevent convergence within the available domain.

SizeStep controls the proportional increase in subvolume edge length in both analysis stages. The example value 0.06 specifies a 6% increase in edge length between successive subvolume sizes, corresponding to an approximate 19% increase in volume. The implementation also enforces a minimum increment equal to the larger of one voxel and the average pore diameter, and rounds the resulting edge length upward to an integer number of voxels. Consequently, the actual increase can exceed 6%, especially for small subvolumes. If omitted, SizeStep defaults to 0.06. It must be positive.

CCInterval is the number of recent subvolume-size measurements used to calculate CC in the deterministic analysis. With CCInterval = 10, CC measures the relative dispersion of up to the ten most recent measurements; the available measurements are used before the window is full. Increasing this value assesses convergence over a longer history of subvolume sizes. It must be a positive integer and defaults to 10.

StatSamples is the number of randomly positioned subvolumes evaluated at each size during the statistical analysis. With StatSamples = 50, each property is sampled in 50 subvolumes to calculate its mean, minimum, maximum, and coefficient of variation (CV). Increasing this value provides more spatial samples at a higher computational cost. It must be a positive integer and defaults to 50.

Seed_Anchor controls the random number generator used to position subvolumes in the statistical analysis. It defaults to True in both routines, which initializes std::mt19937 with the fixed seed 0 and makes sampling reproducible for the same input and configuration. Set Seed_Anchor = False to initialize the generator with a seed from std::random_device, allowing the sampled locations to vary between runs. This parameter does not affect the deterministic analysis.

SubdomainSelect defaults to False. Set it to True to select representative subdomains after the statistical analysis, using its retained REV sizes and means. See Assessing Output Data for the numerical workflow, input restrictions, and outputs.

subdomain_size optionally sets the selection window dimensions in voxels. A positive integer, such as 64, specifies a cube; three positive integers, such as 64, 48, 32, specify the exact x, y, and z dimensions. These dimensions apply to both geometric and hydraulic selection and must fit within the domain. If subdomain_size is omitted, each property uses its own statistical REV window dimensions. The statistical reference sizes and target means remain unchanged.

save_subdomain_raw defaults to false. Set it to true to save the selected geometric and hydraulic windows as raw crops. The selection CSV and domain databases are written independently of this setting.

SimulationParams identifies the input database used for the flow simulation. The referenced database must contain an MRT block, from which the routine reads the relaxation time tau and body-force vector F. A relative path is resolved against the directory containing the analysis input database. The referenced file supplies only these flow parameters; keep the geometry and REV settings in the analysis database. SimulationParams is required when hydraulic analysis is enabled in lbpm_rev_analysis.

VelocityPath is the directory containing the saved LBPM output. Relative paths are resolved from the current working directory. VelocityTimestep selects a timestep directory within this path and must be supplied as a quoted string. Both settings are required when hydraulic analysis is enabled in lbpm_rev_analysis. Use VelocityPath = "." to select the current working directory explicitly.

The selected timestep must contain LBM.summary and a domain mesh with the scalar volume fields Velocity_x, Velocity_y, and Velocity_z. The saved output must contain a single MPI domain whose dimensions match the analysis geometry. Use the same geometry and voxel length as the original simulation. For an MRT simulation, enable write_silo = True in its Visualization block to save the required velocity fields in LBPM output.

The property-selection, convergence, sampling, and subdomain-selection parameters are optional. The three saved-flow settings are required for standalone hydraulic analysis. An empty REV block activates geometrical analysis in lbpm_rev_analysis and both property groups in lbpm_rev_permeability_simulator, with gamma = 0.1, SizeStep = 0.1, CCInterval = 10, StatSamples = 50, and Seed_Anchor = True. Omitting the entire block disables REV analysis.

Assessing Output Data

As an example of output data analysis, we perform REV analyses for the Berea sample (also analyzed in 3D Digital Rocks) using both lbpm_rev_permeability_simulator and lbpm_rev_analysis. We set Seed_Anchor = True to ensure reproducibility of the results. The example includes both geometrical and hydraulic REV analyses:

lbpm_rev_permeability_simulator

Use the following configuration to run REV analysis with lbpm_rev_permeability_simulator:

MRT {
tau = 0.9
F = 0.0, 0.0, 1.0e-4
timestepMax = 200000
tolerance = 0.00001
}
Domain {
   Filename = "Berea.raw"
   ReadType = "8bit"      // data type
   N = 400, 400, 400     // size of original image
   nproc = 1, 1, 1        // process grid
   n = 400, 400, 400      // sub-domain size
   offset = 0, 0, 0 // offset to read sub-domain
   InletLayers = 0, 0, 10 // specify 10 layers along the z-inlet
   OutletLayers = 0, 0, 10 // specify 10 layers along the z-outlet
   voxel_length = 5.345    // voxel length (in microns)
   ReadValues = 0, 1   // labels within the original image
   WriteValues = 1, 0  // associated labels to be used by LBPM
   BC = 0                 // boundary condition type (0 for periodic)
}
REV {
   Geomtrical = True
   Hydraulic = True
   gamma = 0.1
   SizeStep = 0.06
   CCInterval = 10
   StatSamples = 50
}
Visualization {
   write_silo = true     // write SILO databases with assigned variables
   save_velocity = true    // save velocity field within SILO database
}

Results are written to the current working directory. Enabled geometrical analysis produces det_rev_geometric.csv and stat_rev_geometric.csv; enabled hydraulic analysis produces det_rev_hydraulic.csv and stat_rev_hydraulic.csv. The routine also writes pore_size_distribution.csv when an analysis group is enabled. For a detailed description of the output data printed in det_rev_geometric.csv, stat_rev_geometric.csv, det_rev_hydraulic.csv, and stat_rev_hydraulic.csv, expand the section below using the toggle button.

Click here to open: .csv Output Data

All four REV files are plain-text tables with a header row. Despite the .csv extension, fields are separated by spaces, so use a whitespace delimiter when importing them. Results are appended to existing files, and the header is written only when a file is empty. Separate runs therefore accumulate in the same table without a run or timestep identifier.

The suffixes _vx and _um indicate lengths in voxels and micrometres, respectively. With \(h\) equal to Domain.voxel_length in micrometres, x_size_um = x_size_vx * h. These columns report the reference size in the \(x\) direction; the other subvolume dimensions follow the domain aspect ratio, subject to integer rounding.

Deterministic geometrical output: det_rev_geometric.csv

Each row describes one centered subvolume at a successive size. The columns appear in the following order:

iter_step

x_size_um

x_size_vx

porosity

rev_poro_um

rev_poro_vx

RE_poro

CC_poro

surface

rev_surf_um

rev_surf_vx

RE_surf

CC_surf

Table 2 - Columns in the deterministic geometrical output.

Column(s)	Meaning
iter_step	Subvolume-size iteration, starting at zero for each analysis run.
x_size_um, x_size_vx	Current reference subvolume size along the \(x\) direction, expressed in micrometres and voxels.
porosity	Pore-voxel count divided by the total voxel count in the subvolume; a dimensionless fraction, not a percentage.
rev_poro_um, rev_poro_vx	First subvolume size accepted as the deterministic porosity REV, in micrometres and voxels.
RE_poro, CC_poro	Relative change between successive porosity measurements and dispersion over the recent size history, as defined below.
surface	Specific pore-solid interfacial area per total subvolume volume, in inverse micrometres. The implementation estimates it by counting voxel faces separating opposite signs of the distance field inside the subvolume; it is not the total interface area.
rev_surf_um, rev_surf_vx	First subvolume size accepted as the deterministic specific-surface REV, in micrometres and voxels.
RE_surf, CC_surf	Relative change and recent-history dispersion for specific surface area.

Deterministic hydraulic output: det_rev_hydraulic.csv

This file uses the same centered subvolumes and iteration numbering as the deterministic geometrical file when both groups are enabled:

iter_step

x_size_um

x_size_vx

permeability

rev_perm_um

rev_perm_vx

RE_perm

CC_perm

tortuosity

rev_tort_um

rev_tort_vx

RE_tort

CC_tort

Table 3 - Columns in the deterministic hydraulic output.

Column(s)	Meaning
iter_step	Subvolume-size iteration, starting at zero.
x_size_um, x_size_vx	Current reference subvolume size along the \(x\) direction, expressed in micrometres and voxels.
permeability	Permeability estimated from the existing velocity field within the subvolume, in millidarcy (mD). The pore-averaged velocity is projected onto the applied body-force direction and weighted by porosity; a separate flow simulation is not run for each subvolume.
rev_perm_um, rev_perm_vx	First subvolume size accepted as the deterministic permeability REV, in micrometres and voxels.
RE_perm, CC_perm	Relative change and recent-history dispersion for permeability.
tortuosity	Dimensionless hydraulic tortuosity, calculated as the sum of pore velocity magnitudes divided by the sum of pore \(z\) velocities.
rev_tort_um, rev_tort_vx	First subvolume size accepted as the deterministic tortuosity REV, in micrometres and voxels.
RE_tort, CC_tort	Relative change and recent-history dispersion calculated from tortuosity - 1, rather than the displayed tortuosity.

To interpret the values written to the deterministic tables, let \(q_i\) denote the property measured at size iteration \(i\). The implemented relative-change calculation is

(116)\[RE_i = \left| \frac{q_i-q_{i-1}}{q_i+q_{i-1}} \frac{V_{i-1}}{V_i} \right|.\]

Here, \(V_i\) is the actual sampled volume, calculated from the inclusive voxel bounds after clipping to the domain. The implementation uses the ratio of sampled voxel counts because the common voxel volume cancels in \(V_{i-1}/V_i\). CC is the population standard deviation divided by the arithmetic mean of the most recent CCInterval measurements, using the available history before that window is full and excluding invalid values:

(117)\[CC_i =\frac{\sigma(q_{i-m+1},\ldots,q_i)}{\overline{q}(q_{i-m+1},\ldots,q_i)}.\]

For tortuosity, \(q_i = \tau_{h,i}-1\) in both calculations.

A property’s rev_* columns are set when both RE and CC first satisfy \(0 \le RE < \gamma\) and \(0 \le CC < \gamma\). The accepted size is retained in subsequent rows even if the coefficients later increase. The analysis continues through the full domain, so the last row’s x_size_* need not equal the identified REV size.

Before a property converges, rev_*_vx is -1 and rev_*_um is -h because the voxel sentinel is multiplied by the voxel length. If these values persist to the last row, no deterministic REV was found for that property. Unavailable RE or CC values are written as -1; both are unavailable on the first row. A zero normalization denominator (described by NaN) also leaves the corresponding coefficient at -1.

Statistical geometrical output: stat_rev_geometric.csv

Each row summarizes StatSamples randomly positioned subvolumes at one reference size. It contains aggregate statistics, not individual sample measurements or locations. The columns are:

x_size_um

x_size_vx

stat_poro

stat_poro_mean

stat_poro_max

stat_poro_min

stat_surf

stat_surf_mean

stat_surf_max

stat_surf_min

Table 4 - Columns in the statistical geometrical output.

Column(s)	Meaning
x_size_um, x_size_vx	Reference subvolume size along the \(x\) direction, shared by all sampled subvolumes and expressed in micrometres and voxels.
stat_poro	Dimensionless coefficient of variation (CV) of sampled porosities.
stat_poro_mean, stat_poro_max, stat_poro_min	Arithmetic mean, maximum, and minimum porosity across the samples, all expressed as dimensionless fractions.
stat_surf	Dimensionless CV of sampled specific surface areas.
stat_surf_mean, stat_surf_max, stat_surf_min	Arithmetic mean, maximum, and minimum specific surface area, in inverse micrometres, using the same voxel-face estimate as the deterministic analysis.

Statistical hydraulic output: stat_rev_hydraulic.csv

This file summarizes the same random subvolumes as the statistical geometrical file when both groups are enabled:

x_size_um

x_size_vx

stat_perm

stat_perm_mean

stat_perm_max

stat_perm_min

stat_tort

stat_tort_mean

stat_tort_max

stat_tort_min

Table 5 - Columns in the statistical hydraulic output.

Column(s)	Meaning
x_size_um, x_size_vx	Reference subvolume size along the \(x\) direction, shared by all sampled subvolumes and expressed in micrometres and voxels.
stat_perm	Dimensionless CV of sampled permeabilities.
stat_perm_mean, stat_perm_max, stat_perm_min	Arithmetic mean, maximum, and minimum permeability, in mD.
stat_tort	Dimensionless CV calculated from sampled tortuosity - 1 values. It is not the CV of the displayed tortuosity values.
stat_tort_mean, stat_tort_max, stat_tort_min	Arithmetic mean, maximum, and minimum hydraulic tortuosity. The routine adds one back after computing the statistics, so these dimensionless columns report tortuosity itself.

For each statistical property, CV is the population standard deviation divided by the mean over valid samples; internal values equal to -1 are excluded. The population standard deviation uses the number of valid samples as its divisor. A CV of 0.05 means 5% relative dispersion. -1 means that CV is unavailable, either because no samples are valid or because the mean used for normalization is zero.

The statistical size sequence begins at the smallest deterministic REV found among the enabled properties. If none was found, it begins at twice the average pore diameter. Sizes then increase while remaining smaller than the full domain’s \(x\) extent. Consequently, the statistical and deterministic files can contain different size sequences and row counts; compare them using x_size_vx or x_size_um. If the initial statistical size already reaches the domain limit, the file has no data rows for that run.

The current tortuosity calculation always uses the \(z\) velocity component, even if the body force points in another direction. A zero summed \(z\) velocity gives an invalid internal tortuosity value, which is printed as 0 in the deterministic file and excluded from statistical calculations. If all tortuosity samples at a size are invalid, stat_tort is -1 and the reported mean, maximum, and minimum are all 0. These zeros indicate unavailable tortuosity statistics, not physical measurements. Falar do NaN

The REV results for the Berea sandstone sample are presented in Fig. 7 -, including porosity, specific surface area, absolute permeability, and hydraulic tortuosity. The Python code used to generate these plots is available in the toggle section below the figure.

Fig. 7 - Evolution of the measured properties with subvolume size for the Berea sandstone sample. Connected points represent the range of deterministic measurements; isolated points represent the averages of the statistical measurements; vertical bars represent the standard deviation of the statistical measurements; dashed lines represent the REVs identified by the selected approach; and the black line represents the upper limit of 71% for the REV size.

Click here to open: Plot Code

import numpy as np
import matplotlib.pyplot as plt
# -------------------- Configuration --------------------
rev_threshold = 0.10
TAMANHO_BASE = 25
# Options: "statistical" or "deterministic"
rev_method = "statistical"
# rev_method = "deterministic"
colors = {"poro": "#0077b6","kabs": "#d62728","tort": "#2ca02c","surf": "#9467bd"}

# -------------------- Read CSV files --------------------
det_geo = np.genfromtxt("det_rev_geometric.csv", names=True)
det_hyd = np.genfromtxt("det_rev_hydraulic.csv", names=True)
stat_geo = np.genfromtxt("stat_rev_geometric.csv", names=True)
stat_hyd = np.genfromtxt("stat_rev_hydraulic.csv", names=True)
# -------------------- Deterministic data --------------------
tamanho_um = det_geo["x_size_um"]
tamanho_vx = det_geo["x_size_vx"]
porovec = det_geo["porosity"]
kabsvec = det_hyd["permeability"]
tortvec = det_hyd["tortuosity"]
surfvec = det_geo["surface"]
# -------------------- Statistical data --------------------
tamanho_stat_um = stat_geo["x_size_um"]
poroavg = stat_geo["stat_poro_mean"]
kabsavg = stat_hyd["stat_perm_mean"]
tortavg = stat_hyd["stat_tort_mean"]
surfavg = stat_geo["stat_surf_mean"]
# Statistical coefficients of variation
cv_poro = stat_geo["stat_poro"]
cv_kabs = stat_hyd["stat_perm"]
cv_tort = stat_hyd["stat_tort"]
cv_surf = stat_geo["stat_surf"]
# Convert CV to standard deviation
porostd = cv_poro * poroavg
kabsstd = cv_kabs * kabsavg
tortstd = cv_tort * tortavg
surfstd = cv_surf * surfavg
# -------------------- Final reference values --------------------
poro_final = porovec[-1]
kabs_final = kabsvec[-1]
tort_final = tortvec[-1]
surf_final = surfvec[-1]
# -------------------- Normalization --------------------
poro_norm = porovec / poro_final
kabs_norm = kabsvec / kabs_final
tort_norm = tortvec / tort_final
surf_norm = surfvec / surf_final

poroavg_norm = poroavg / poro_final
kabsavg_norm = kabsavg / kabs_final
tortavg_norm = tortavg / tort_final
surfavg_norm = surfavg / surf_final

porostd_norm = porostd / abs(poro_final)
kabsstd_norm = kabsstd / abs(kabs_final)
tortstd_norm = tortstd / abs(tort_final)
surfstd_norm = surfstd / abs(surf_final)

# -------------------- REV determination --------------------
def first_rev_size(sizes, cv, threshold):
   valid = np.where( np.isfinite(cv) & (cv >= 0) & (cv < threshold) )[0]
   return sizes[valid[0]] if valid.size else None

def reported_rev_size(data, column):
   values = data[column]
   valid = values[np.isfinite(values) & (values > 0)]
   return valid[-1] if valid.size else None

if rev_method == "statistical":
   rev_poro = first_rev_size( tamanho_stat_um, cv_poro, rev_threshold )
   rev_kabs = first_rev_size( tamanho_stat_um, cv_kabs, rev_threshold )
   rev_tort = first_rev_size( tamanho_stat_um, cv_tort, rev_threshold )
   rev_surf = first_rev_size( tamanho_stat_um, cv_surf, rev_threshold )

elif rev_method == "deterministic":
   rev_poro = reported_rev_size( det_geo, "rev_poro_um" )
   rev_kabs = reported_rev_size( det_hyd, "rev_perm_um" )
   rev_tort = reported_rev_size( det_hyd, "rev_tort_um" )
   rev_surf = reported_rev_size( det_geo, "rev_surf_um" )
else:
   raise ValueError("Unknown REV method.")

print(f"Porosity REV: {rev_poro} um")
print(f"Permeability REV: {rev_kabs} um")
print(f"Tortuosity REV: {rev_tort} um")
print(f"Surface area REV: {rev_surf} um")

# -------------------- Plot configuration --------------------
plt.style.use("seaborn-v0_8-whitegrid")
plt.rcParams.update({
   "font.size": TAMANHO_BASE,
   "axes.titlesize": TAMANHO_BASE,
   "axes.labelsize": TAMANHO_BASE,
   "xtick.labelsize": TAMANHO_BASE - 4,
   "ytick.labelsize": TAMANHO_BASE - 4,
   "legend.fontsize": TAMANHO_BASE - 6,
   "mathtext.fontset": "cm"
})

# -------------------- Plotting function --------------------
def plot_rev_properties(ax, properties, title):
   # First valid statistical subvolume size
   transition_size = np.min(tamanho_stat_um[np.isfinite(tamanho_stat_um)])
   # Deterministic results stop before statistical results begin
   mask_det = tamanho_um < transition_size
   for prop in properties:
      # -------------------- Deterministic curves --------------------
      x_det = tamanho_um[mask_det]
      y_det = prop["det"][mask_det]

      # Find the first statistical point
      idx_stat = np.where(np.isfinite(prop["avg"]))[0]

      if idx_stat.size > 0:
            i = idx_stat[0]

            x_combined = np.append(x_det, tamanho_stat_um[i])
            y_combined = np.append(y_det, prop["avg"][i])
      else:
            x_combined = x_det
            y_combined = y_det

      ax.plot(x_combined,y_combined,marker=prop["marker"],linestyle="-",color=prop["color"],label=prop["label"],fillstyle='none')
      # -------------------- Statistical error bars --------------------
      ax.errorbar(tamanho_stat_um,prop["avg"],yerr=prop["std"],fmt=prop["marker"],linestyle="none",color=prop["color"],capsize=4,alpha=0.75,fillstyle='none')
      # -------------------- REV vertical lines --------------------
      if prop["rev"] is not None:
            ax.axvline(prop["rev"],linestyle="--",color=prop["color"],linewidth=2)
   # -------------------- Reference horizontal line --------------------
   ax.axhline(y=1.0,color="black",linestyle=":",linewidth=2)
   # -------------------- Additional reference lengths --------------------
   lmax_media = tamanho_um[-1] * (16 + 6*np.sqrt(3))/37
   # lmax_obrig = tamanho_um[-1] * (4 + np.sqrt(2))/7
   ax.axvline(lmax_media, color="k", linewidth=1.5)
   # ax.axvline(lmax_obrig, color="k", linewidth=1.5)
   # -------------------- Axis labels --------------------
   ax.set_title(title, pad=20)
   ax.set_xlabel(r"Aresta do subvolume [$\mu$m]")
   ax.set_ylabel("Propriedade normalizada [-]")
   ax.set_xlim(tamanho_um[0], tamanho_um[-1])
   # -------------------- Top axis: voxel units --------------------
   ax2 = ax.twiny()
   ax2.set_xlim(ax.get_xlim())
   voxel_ticks = np.linspace(tamanho_vx[0], tamanho_vx[-1], 6)
   um_ticks = np.interp(voxel_ticks, tamanho_vx, tamanho_um)
   ax2.set_xticks(um_ticks)
   ax2.set_xticklabels([f"{v:.0f}" for v in voxel_ticks])
   ax2.set_xlabel("Aresta do subvolume [voxels]")
   # -------------------- Legend --------------------
   ax.legend(loc="upper right",frameon=True,facecolor="white",edgecolor="black")
# -------------------- Geometric properties --------------------
geometric_properties = [
   {"det": poro_norm,"avg": poroavg_norm,"std": porostd_norm,"rev": rev_poro,"color": colors["poro"],"marker": "o","label": rf"$\phi$ (final: {poro_final:.3f})"},
   {"det": surf_norm,"avg": surfavg_norm,"std": surfstd_norm,"rev": rev_surf,"color": colors["surf"],"marker": "D","label": rf"$S_v$ (final: {surf_final:.4f})"}
]

# -------------------- Hydraulic properties --------------------
hydraulic_properties = [
   {"det":kabs_norm,"avg":kabsavg_norm,"std":kabsstd_norm,"rev":rev_kabs,"color":colors["kabs"],"marker":"s","label":rf"$k$ (final:{kabs_final:.2f} mD)"},
   {"det":tort_norm,"avg":tortavg_norm,"std":tortstd_norm,"rev":rev_tort,"color":colors["tort"],"marker":"^","label":rf"$\tau$(final:{tort_final:.3f})"}
]
# ===================Create side-by-side plots================
fig, axes = plt.subplots(1, 2,figsize=(22, 8),sharex=True,sharey=True)
plot_rev_properties(axes[0],geometric_properties,title="(a) Geometric properties")   # Left: geometric REV
plot_rev_properties(axes[1],hydraulic_properties,title="(b) Hydraulic properties")   # Right: hydraulic REV
axes[1].set_ylabel("") # Remove duplicate Y-axis label
plt.tight_layout(w_pad=3) # Layout
plt.savefig("/home/ricardolmb/Desktop/REV-Code/LBPM_fork/docs-sphinx/source/_static/images/rev_combined.svg", bbox_inches="tight")

lbpm_rev_analysis

The same analysis performed by lbpm_rev_permeability_simulator can be performed by lbpm_rev_analysis if the velocity fields have already been obtained. Running lbpm_rev_analysis with the input.db file below produces the same results as those presented in Fig. 7 -.

Domain {
   Filename = "Berea.raw"
   ReadType = "8bit"      // data type
   N = 400, 400, 400     // size of original image
   nproc = 1, 1, 1        // process grid
   n = 400, 400, 400      // sub-domain size
   offset = 0, 0, 0 // offset to read sub-domain
   InletLayers = 0, 0, 10 // specify 10 layers along the z-inlet
   OutletLayers = 0, 0, 10 // specify 10 layers along the z-outlet
   voxel_length = 5.345    // voxel length (in microns)
   ReadValues = 0, 1   // labels within the original image
   WriteValues = 1, 0  // associated labels to be used by LBPM
   BC = 0                 // boundary condition type (0 for periodic)
}
REV {
   Geomtrical = True
   Hydraulic = True
   gamma = 0.1
   SizeStep = 0.06
   CCInterval = 10
   StatSamples = 50
   Seed_Anchor = True
   SimulationParams = "input.db"
   VelocityPath = "./"
   VelocityTimestep = "vis35000"
}

The lbpm_rev_analysis routine can also perform geometrical analysis alone without velocity fields. Running it with the input.db file below produces the same results as those presented in Fig. 7 - (a).

Domain {
   Filename = "Berea.raw"
   ReadType = "8bit"      // data type
   N = 400, 400, 400     // size of original image
   nproc = 1, 1, 1        // process grid
   n = 400, 400, 400      // sub-domain size
   offset = 0, 0, 0 // offset to read sub-domain
   InletLayers = 0, 0, 10 // specify 10 layers along the z-inlet
   OutletLayers = 0, 0, 10 // specify 10 layers along the z-outlet
   voxel_length = 5.345    // voxel length (in microns)
   ReadValues = 0, 1   // labels within the original image
   WriteValues = 1, 0  // associated labels to be used by LBPM
   BC = 0                 // boundary condition type (0 for periodic)
}
REV {
   Geomtrical = True
   Hydraulic = False
   gamma = 0.1
   SizeStep = 0.06
   CCInterval = 10
   StatSamples = 50
   Seed_Anchor = True
}

Representative subdomain selection

Enable SubdomainSelect in input.db to select representative windows in either REV executable. For example, select a 64 x 64 x 128 geometric window without hydraulic input, using the statistical REV properties as selection targets:

REV {
   Geometrical = True
   Hydraulic = False
   SubdomainSelect = True
   subdomain_size = 64, 64, 128
   save_subdomain_raw = false
   gamma = 0.1
   StatSamples = 50
   Seed_Anchor = True
}

save_subdomain_raw defaults to false in both REV executables. Set save_subdomain_raw = true in the REV block to export the selected .raw crops for both geometric and hydraulic selection. With raw export disabled, selection still writes its CSV and domain databases, leaves existing raw crops and temporary raw files untouched, and leaves the CSV’s raw_file field blank.

For permeability selection, set Hydraulic = True and supply the saved-flow settings described above. Porosity and permeability use their independently retained statistical REV sizes and means, without repeating REV analysis. The statistical mean specific surface area is retained at the porosity REV size, and the mean hydraulic tortuosity is retained at the permeability REV size. The two targets in each pair are measured using the same statistical window dimensions. The independently assessed surface-area and tortuosity REVs do not determine the selection window sizes.

subdomain_size optionally overrides the selection window dimensions in voxels. A single positive integer, such as subdomain_size = 64, specifies a 64 x 64 x 64 cube. Alternatively, subdomain_size = 64, 64, 128 specifies the exact x, y, and z dimensions. The configured dimensions apply to both geometric and hydraulic selection and must fit within the analyzed Domain.n. If subdomain_size is omitted, each property uses its own statistical REV window dimensions: L x L x L for a cubic image, or the statistical analysis’s proportionally scaled and rounded dimensions for a rectangular image.

The override changes only the selection window. The statistical REV sizes and all retained target means, including specific surface area and hydraulic tortuosity, remain unchanged. Candidates at the requested size are compared against those targets; REV analysis is not repeated at the custom size. A converged statistical REV and valid target properties are still required. A custom size does not supply missing reference values or enable selection for an unconverged property.

For a detailed description of the subdomain selection procedure, expand the toggle section below.

Click here to open: Subdomain Selection

The selection scans every valid position, moving one voxel along each axis and including the last window at each boundary. For the actual geometric selection window dimensions, it minimizes the following weighted score:

(118)\[\begin{split}E_{\phi} &= \frac{|\phi_{\mathrm{local}}-\overline{\phi}_{\mathrm{REV}}|} {|\overline{\phi}_{\mathrm{REV}}|}, \\ E_{S_v} &= \frac{|S_{v,\mathrm{local}}-\overline{S_v}_{\mathrm{REV}}|} {|\overline{S_v}_{\mathrm{REV}}|}, \\ \mathrm{selection\_score} &= 0.6 E_{\phi} + 0.4 E_{S_v}.\end{split}\]

For the actual hydraulic selection window dimensions, hydraulic selection minimizes the following score:

(119)\[\begin{split}E_k &= \frac{|k_{\mathrm{local}}-\overline{k}_{\mathrm{REV}}|} {|\overline{k}_{\mathrm{REV}}|}, \\ E_T &= \frac{|T_{\mathrm{local}}-\overline{T}_{\mathrm{REV}}|} {|\overline{T}_{\mathrm{REV}}|}, \\ \mathrm{selection\_score} &= 0.6 E_k + 0.4 E_T.\end{split}\]

Lower scores indicate a closer match. The fixed weights are 60% porosity and 40% specific surface area for the geometric region, and 60% permeability and 40% hydraulic tortuosity for the hydraulic region.

Nonzero Domain.InletLayers and Domain.OutletLayers are supported. Selection then rereads the original source geometry to build the candidate pore mask before synthetic layer modifications. Raw input uses the existing ReadValues/WriteValues convention, including the signed-byte narrowing performed by the current 16bit geometry reader. This classification does not change the bytes exported below. ID.00000 labels are already mapped and are used directly.

The layer settings, full-domain analysis, saved velocities, and retained statistical REV sizes and means remain unchanged. The statistical targets can therefore include synthetic layer effects; deviations from candidates measured on the original rock can be larger.

Selection writes the following files in the current working directory:

• When save_subdomain_raw = true, subdomain_porosity_<nx>x<ny>x<nz>.raw and subdomain_permeability_<nx>x<ny>x<nz>.raw contain the independently selected crops. Here nx, ny, and nz are the selected window dimensions in voxels along x, y, and z, respectively. For example, a 64 x 64 x 64 geometric window is saved as subdomain_porosity_64x64x64.raw. Each property’s filename uses its own selected dimensions. Input specified by Domain.Filename with ReadType = "8bit" or "16bit" is copied byte for byte, preserving the original labels and data type before relabeling.

• subdomain_selection.csv uses comma separators and records each property’s status, REV size in voxels and micrometres, dimensions and physical lengths, statistical mean, selected value, relative deviation, number of candidates, raw filename in raw_file (blank when raw export is disabled), and source layout. The raw filename includes the selected window dimensions. rev_size_vx and rev_size_um retain the statistical reference size, even when subdomain_size is set. nx,ny,nz, physical lengths, coordinates, candidate count, and the raw filename describe the actual selection window. Coordinates use zero-based indices and exclusive upper bounds. x0,y0,z0 and x1,y1,z1 refer to the halo-free analysis image. The source_* coordinates include Domain.offset or the input halos of ID.00000; source dimensions and bytes per voxel allow the crop to be reproduced directly from the original file. The geometric row retains statistical_mean, selected_value, and relative_deviation for porosity, and adds statistical_mean_surface, selected_surface, relative_deviation_surface, porosity_weight, and surface_weight. These fields are blank for the hydraulic row. The hydraulic row retains statistical_mean, selected_value, and relative_deviation for permeability, and adds statistical_mean_tortuosity, selected_tortuosity, relative_deviation_tortuosity, permeability_weight, and tortuosity_weight. These fields are blank for the geometric row. selection_score records the applicable weighted score for either selected region.

• geometrical-rev-domain.db locates the region with the lowest weighted geometric score, and hydraulic-rev-domain.db locates the region with the lowest weighted hydraulic score. Each contains only a Domain block referencing the original full sample. Filename is the absolute path to that sample, N is the full source size, n is the actual selected window size (including any subdomain_size override), and offset is its starting coordinate in the source, including any original analysis offset. The domain_file column in the CSV identifies the corresponding database.

For example, the following Domain block from a geometrical-rev-domain.db output file describes a selected subvolume within a sample measuring 400 x 400 x 400 voxels:

Domain {
   Filename = "/path/to/Berea.raw"
   ReadType = "8bit"
   ReadValues = 0, 1
   WriteValues = 1, 0
   N = 400, 400, 400
   n = 64, 64, 64
   offset = 100, 120, 80
   nproc = 1, 1, 1
   voxel_length = 5.345
   BC = 0
   InletLayers = 0, 0, 0
   OutletLayers = 0, 0, 0
}

Reuse this block in a subsequent input database to load the selected region from the full sample. A disabled property or one without a converged statistical REV receives a status row and produces no raw crop or domain database.

Benchmark Cases

3D Digital Rocks
